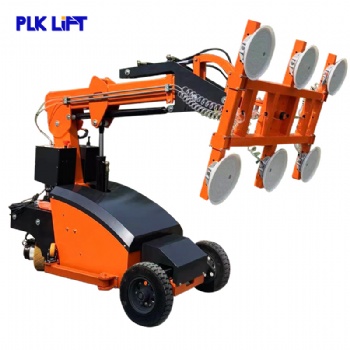

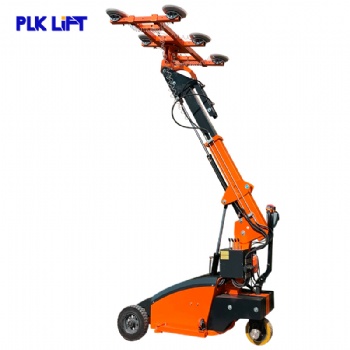

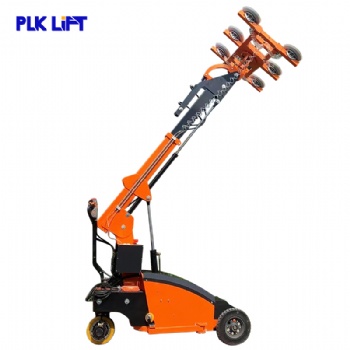

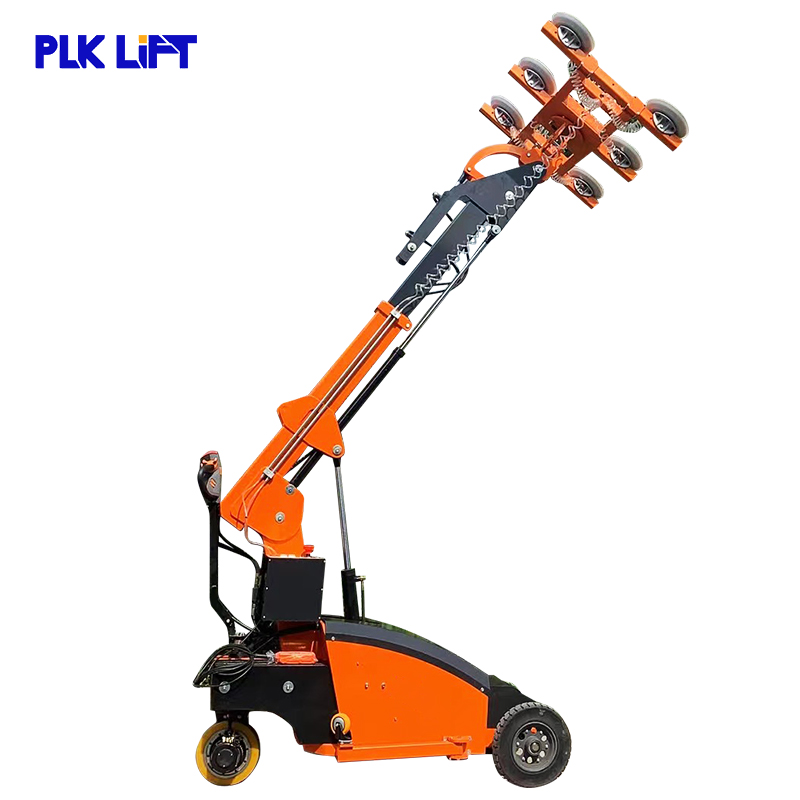

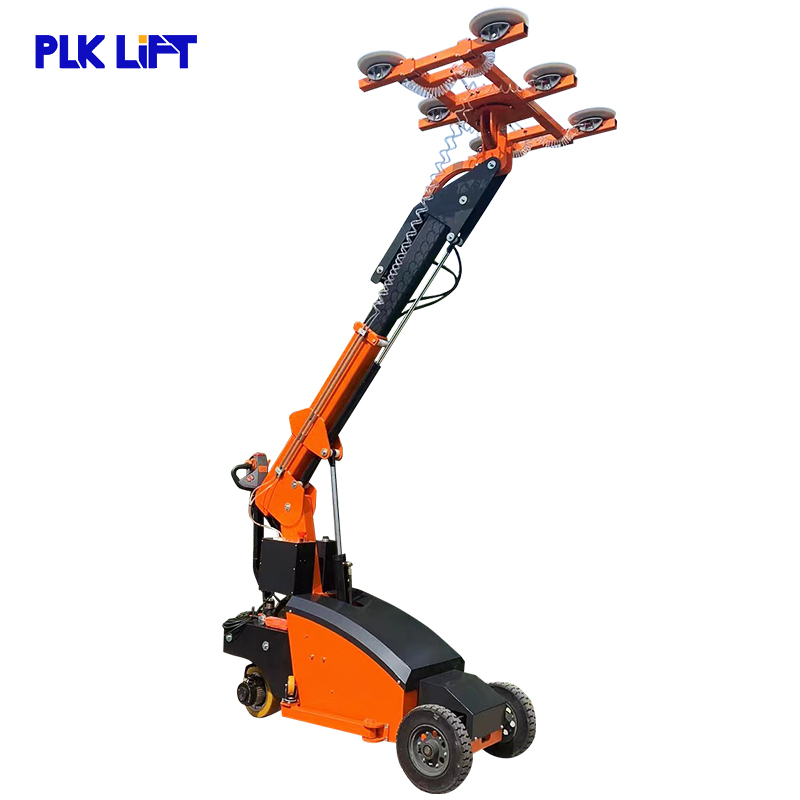

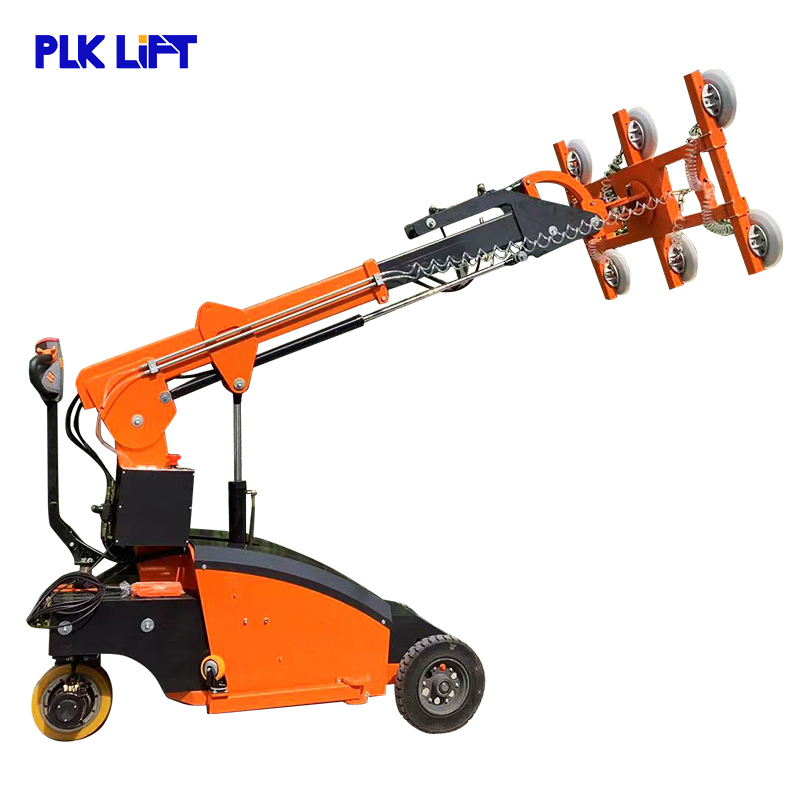

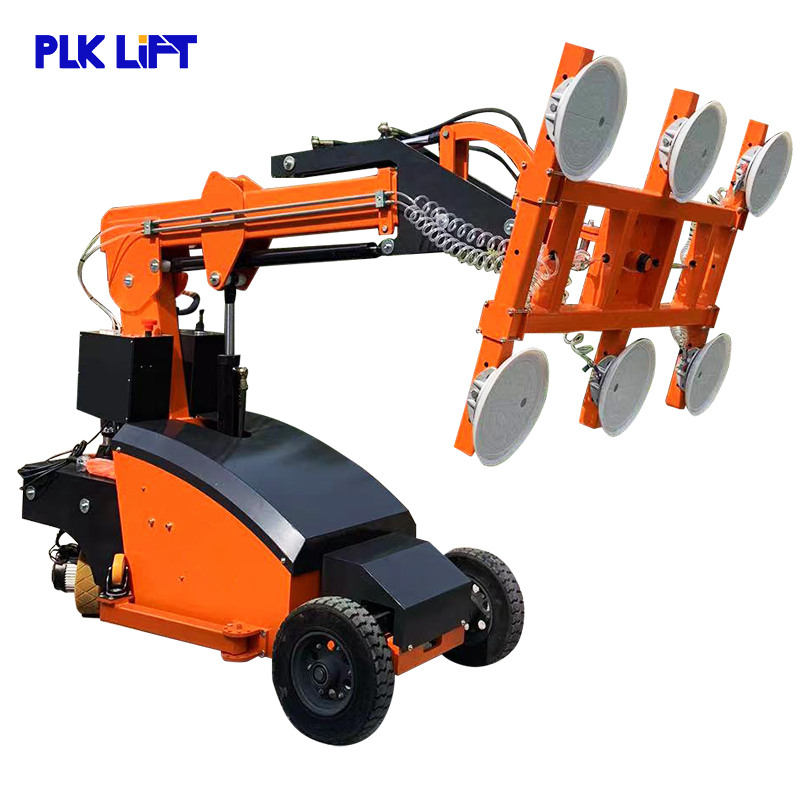

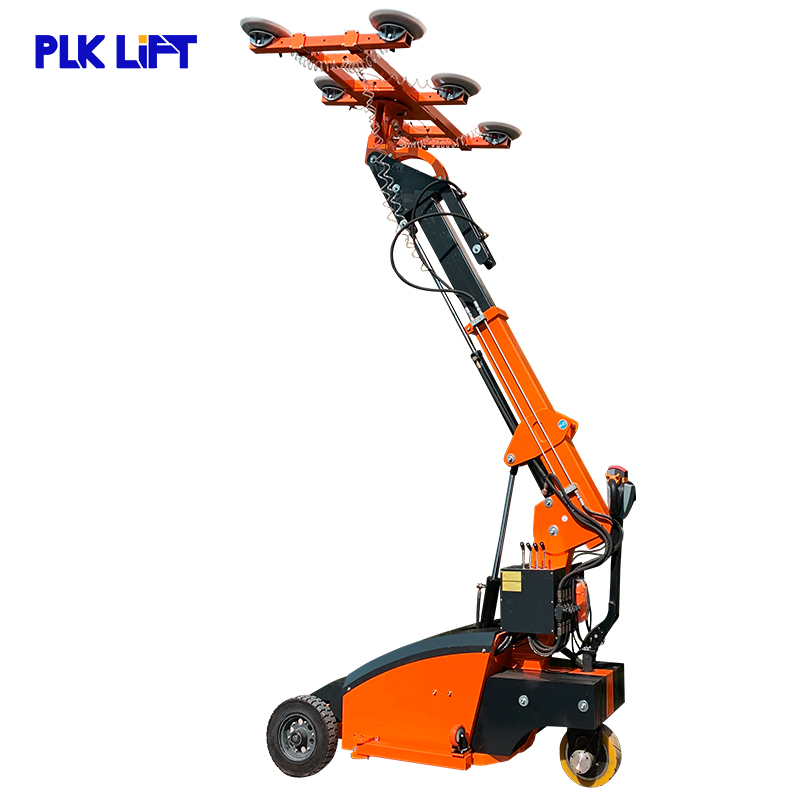

We provide you with vacuum lifters for sheet handling and installation. This device enables you to safely install glass panels, iron or marble slabs, and you can also easily move them to halls, warehouses and construction sites.
These devices are safe to use, good to protect workers from accidents, spinal injuries and sprains.
Main functions: electric flip 90 degrees, electric telescopic arm lifting, manual or electric left and right side turning and rotation 360 degrees, with optional maintenance free battery you can move it easily and electrically.
Specification lists: (We accept customization per actual panels size and weight.)
Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 | |
Load Capacity | 300kg (arm retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | 800kg (retract) | |
150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | 400kg (extend) | ||
Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
Suction Caps | 4pcs, Ø300mm | 4pcs, Ø300mm | 6pcs, Ø300mm | 6pcs, Ø300mm | 8pcs, Ø300mm | |
Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
Drive motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W | |
Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
Packing Size | 2560 x 1030 x 1700mm | 2580 x 1050 x 1700mm | 3000 x 1250 x 2300mm | |||
Movements | Automatic (4kinds) | 1. Pad frame vertical up/down 180° automatic | ||||
2. Boom in/out 610/760mm automatic | ||||||
3. Powered arm lift up/down automatic | ||||||
4. Lateral side shift 100mm automatic | ||||||
Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | |||||
6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | ||||||
Advantages:
1. U.S. imported silica gel raw material suction cups, good adsorption, anti-aging
2. American Thomas vacuum system design, safe and efficient
3. High-power pole design, strong thrust, easy to turn over
4. Japanese Panasonic vacuum sensor, with automatic start and stop function, sensitive response and stable performance
5. Equipped with a vacuum accumulator, the pressure holding time is long and the use is safer
6. Two 12V20Ah large-capacity batteries, sufficient power
7. 24V charger with intelligent repair function
8. Each suction cup has a vacuum control valve, which can be controlled individually and is easy to maintain
9. The position of the suction cup is adjustable to adapt to different sizes of glass
10. Radio remote control operation, easy to use and safe
11. The suction cup holder can be extended (H type)
Welcome to inquire about our vacuum suction cup lifter.
