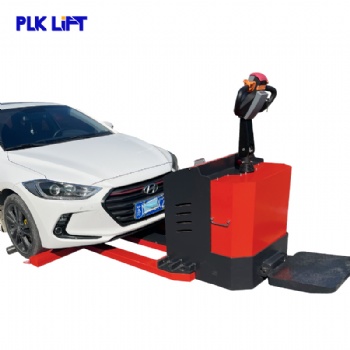

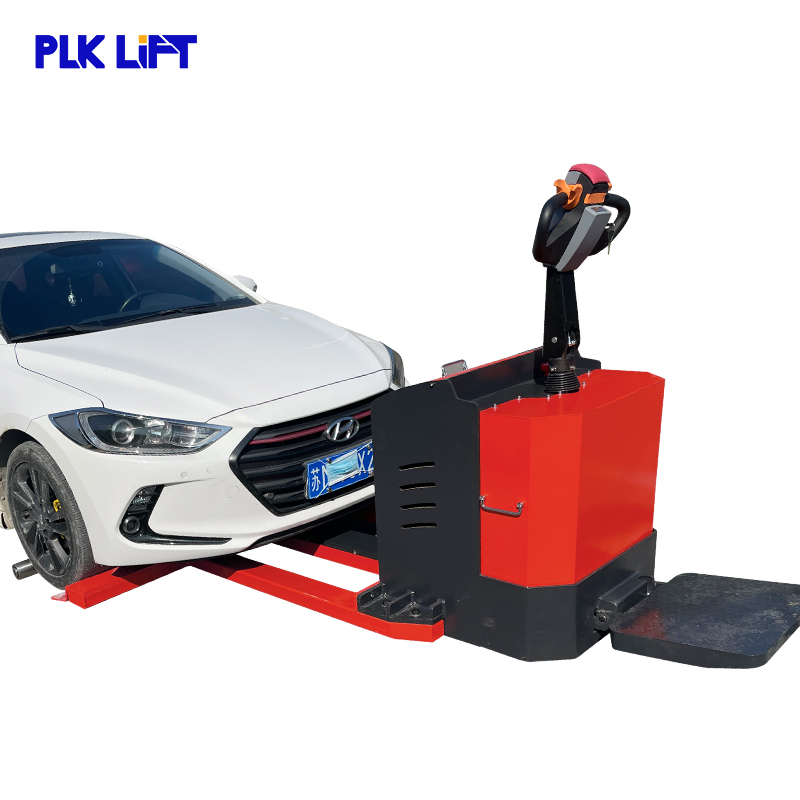

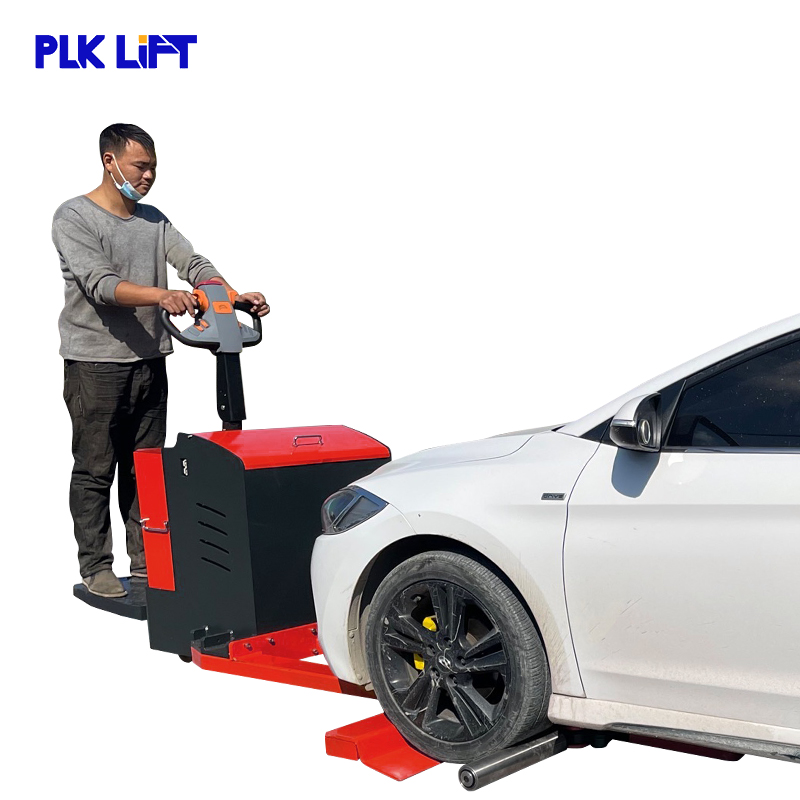

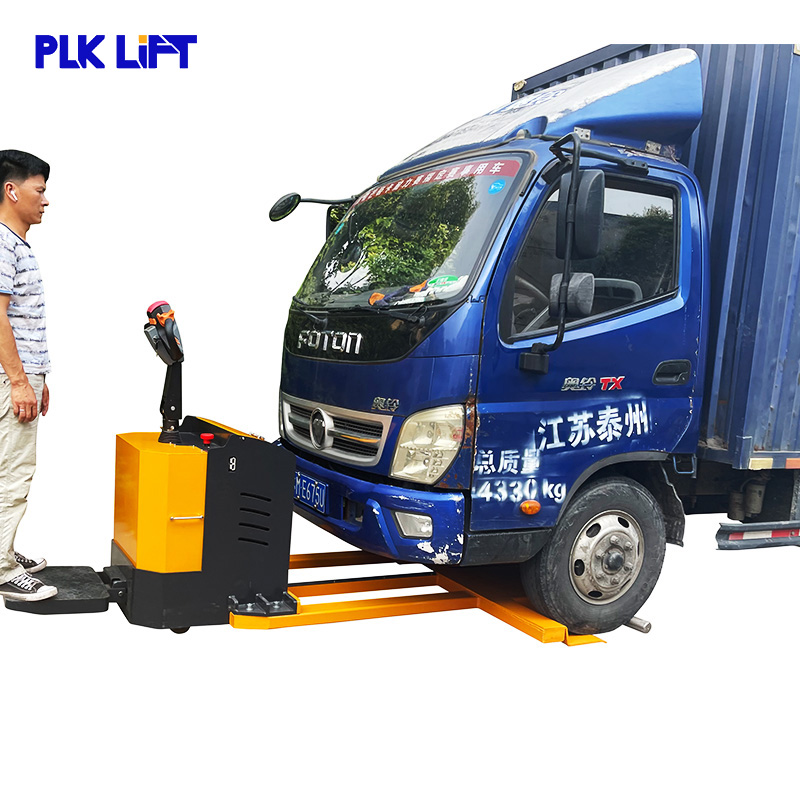

The car mover is specially designed for automobile manufacturers, parking lots, exhibition halls, residential quarters, underground parking lots, residential villas, corporate parking lots, commercial parking lots, and can realize no ignition shift steering. The electronic step less speed regulation system has stable performance and simple operation. Equipped with power battery for longer, equipped with intelligent charger, no need for special monitoring during the entire charging process.

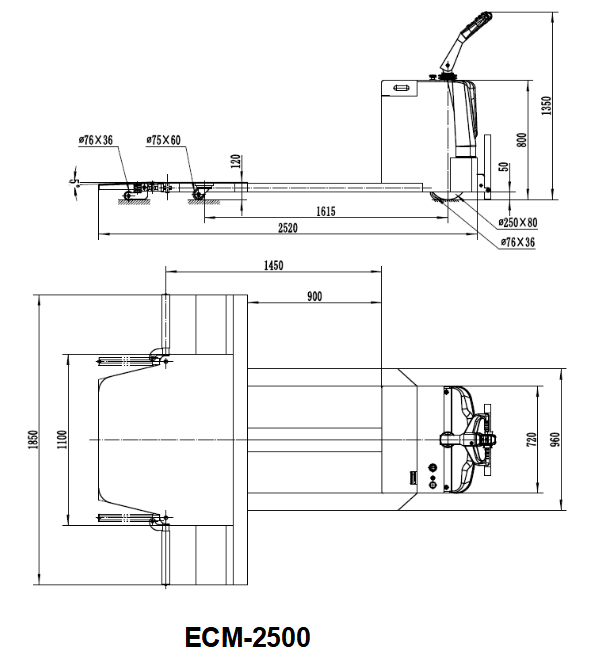

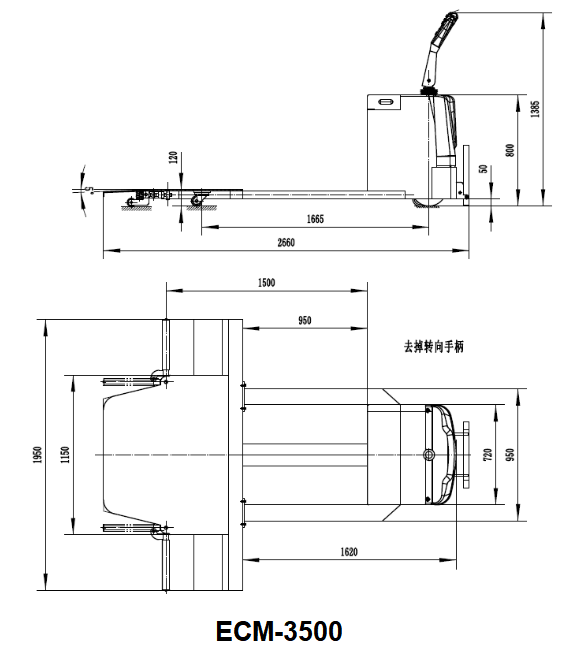

| Model | ECM-2500 | ECM-3500 |
| Loading Capacity | 2500KG | 3500KG |
| Battery | 2x12V/210AH | 2x12V/210AH |
| Charger | 24V/30A | 24V/30A |
| Driving Motor | DC24V/1200W | DC24V/1500W |
| Lifting Motor | 24V/2000W | 24V/2000W |
| Climbing Capacity(unloaded) | 10% | 10% |
| Climbing Capacity(loaded) | 5% | 5% |
| Materials | Steel panel 6mm | |
| Battery Power Indicator | Yes | |
| Driving Wheel | PU | |
| Driving speed - Unload | 5Km/h | |
| Driving speed - loaded | 4Km/h | |
| Lifting height | 115mm | |
| Braking type | Electromagnetic braking | |
| Street Request | 2000mm, can move Forward and Backward | |
